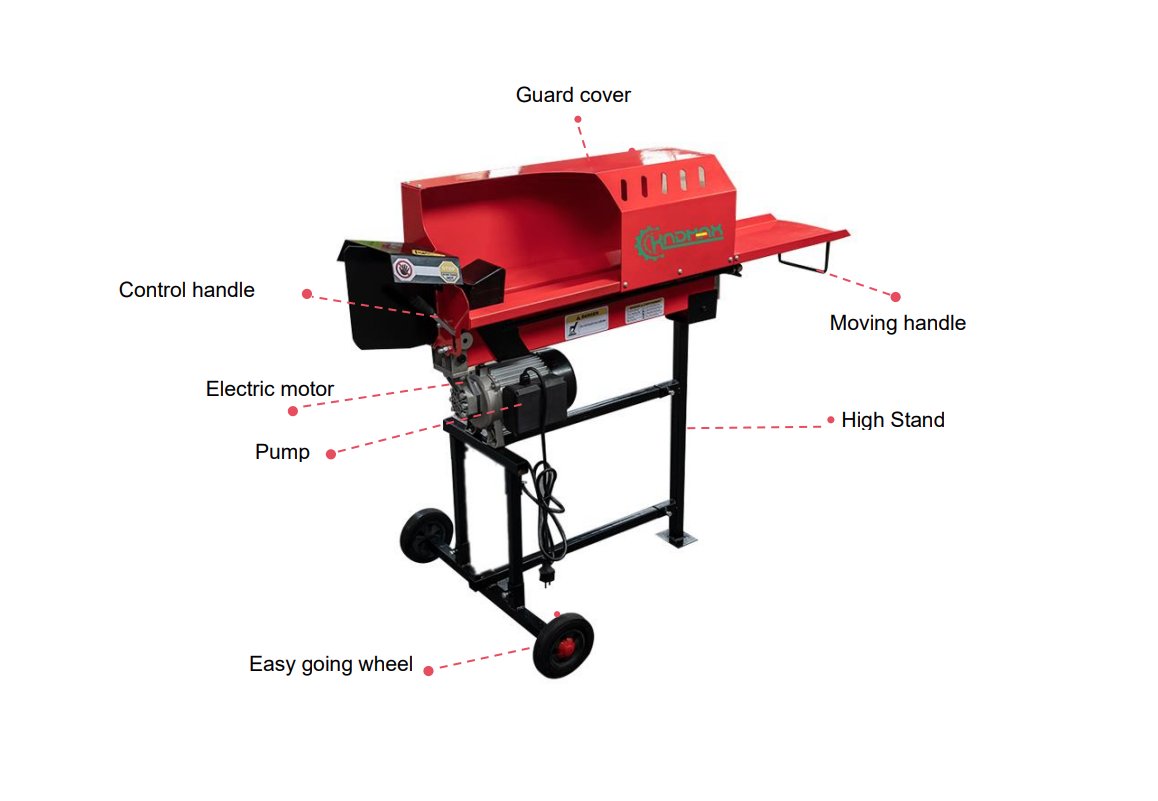

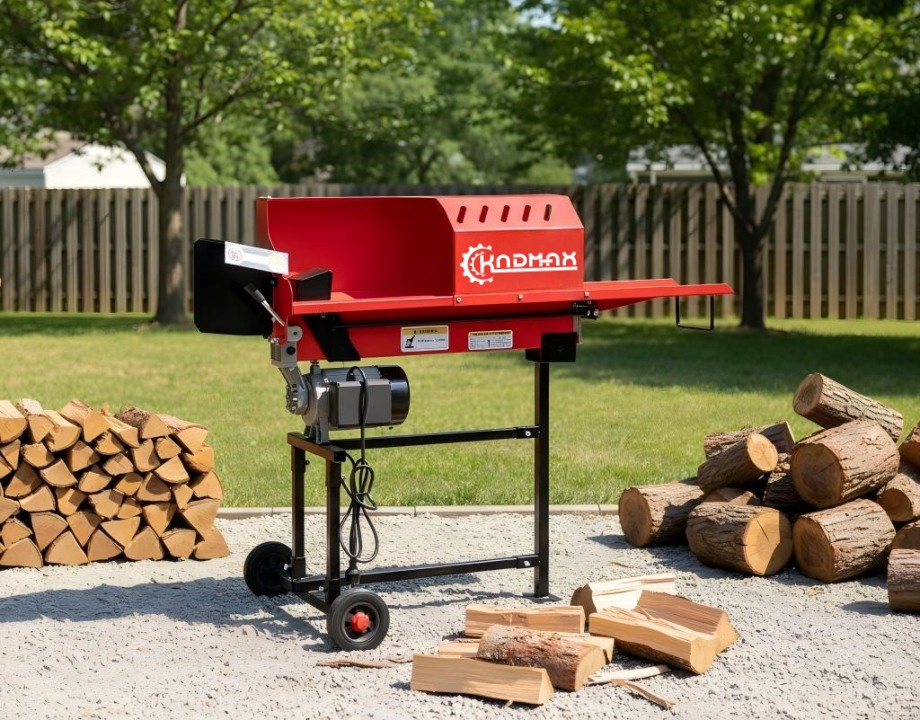

Powerful motor and 7 tons of splitting force, great choice for house with a wood-burning stove or fireplace.
Split logs up to 22 inches in length.

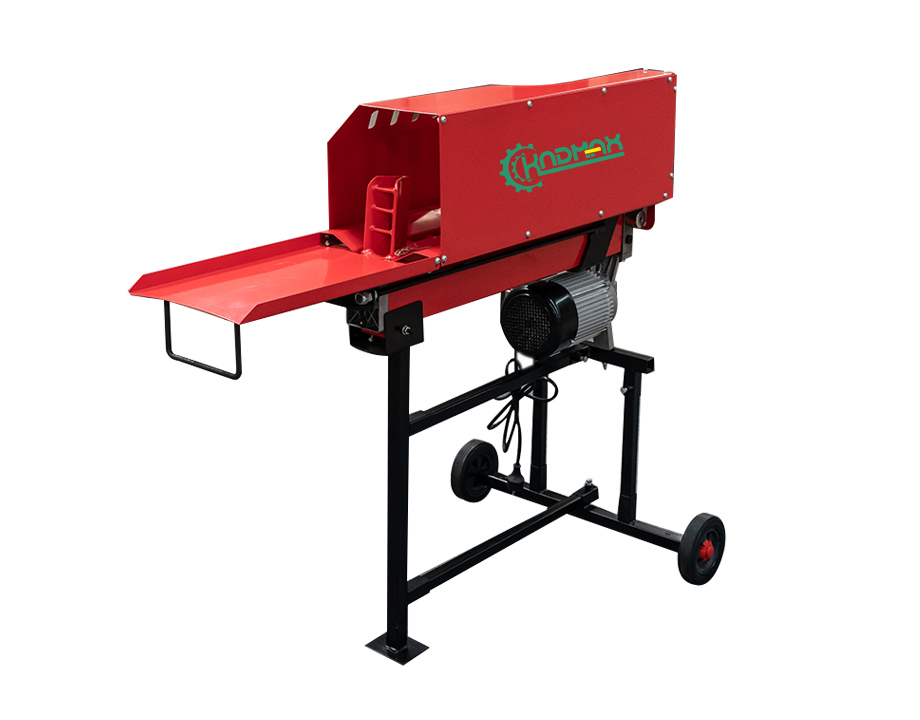

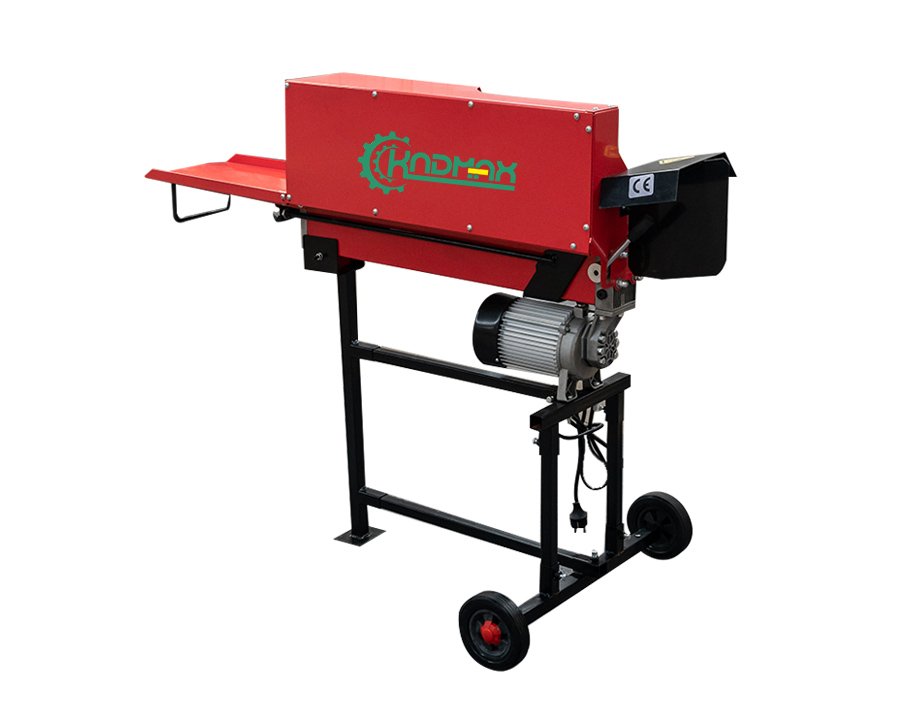

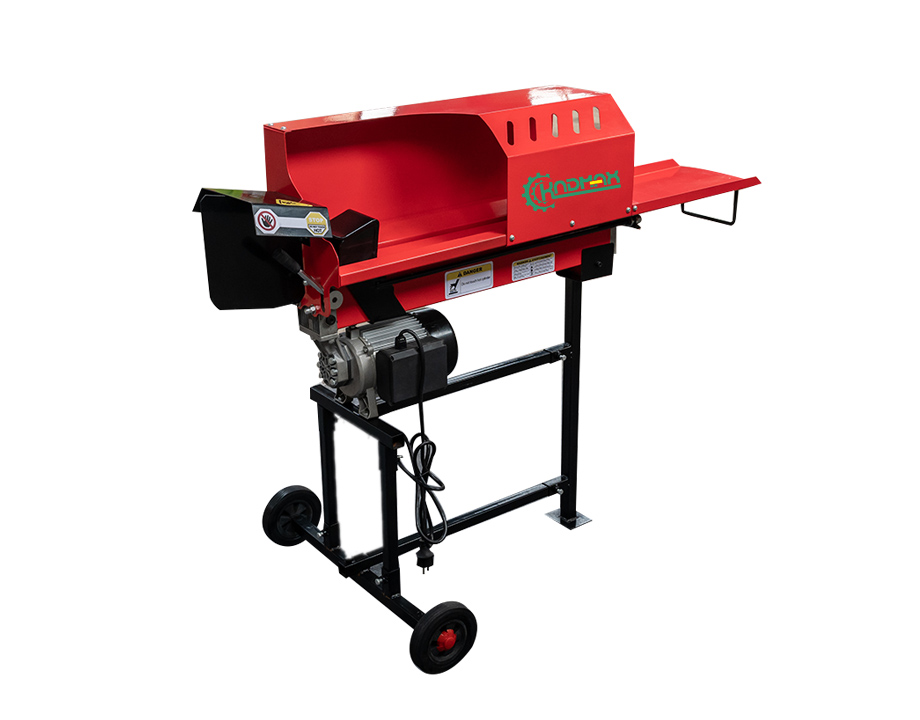

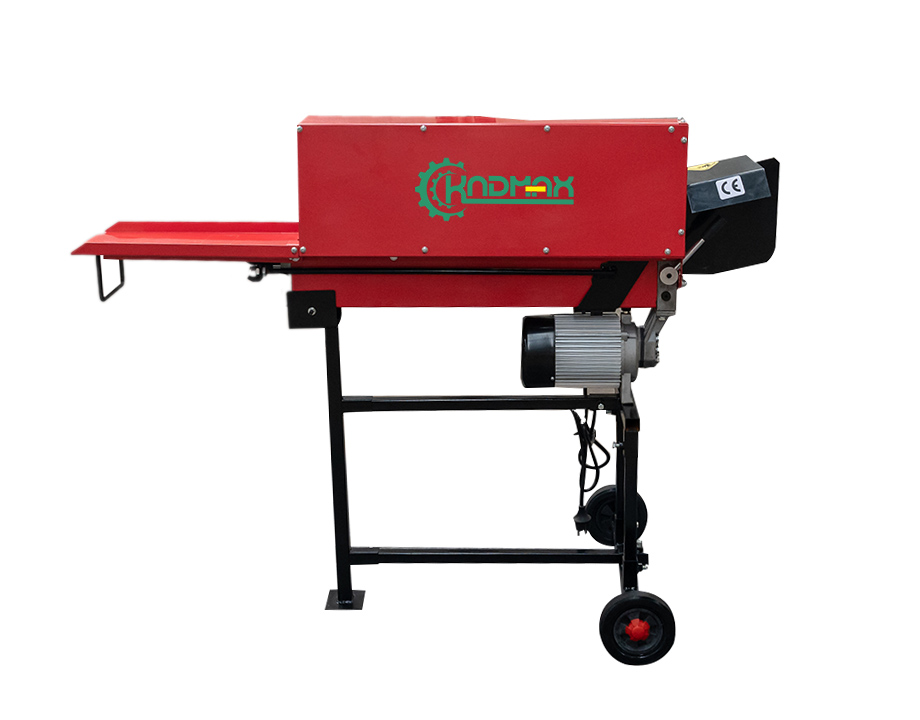

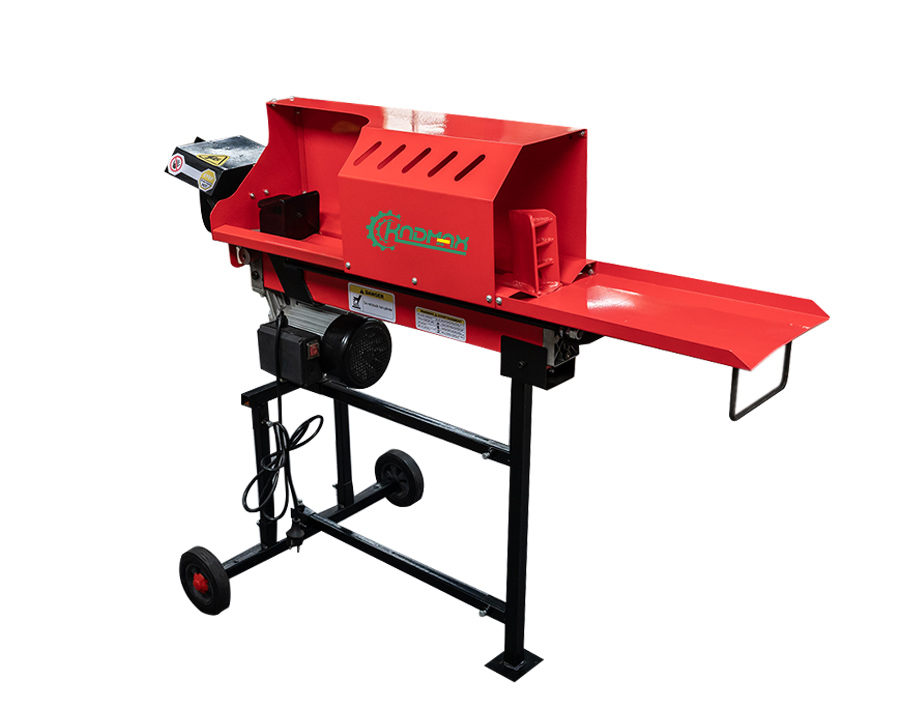

Portable hydraulic electric log splitter, allows anybody to be able to split their own logs at home without the emission of carbon monoxide.
An efficient design with wheels makes for easy transportation.
With built-in side rails keep logs stable while splitting.
Auto-return allows for easy maneuvering after one split finished.
Powerful motor and 7 tons of splitting force, great choice for house with a wood-burning stove or fireplace
With built-in side rails keep logs stable while splitting; Auto-return allows for easy maneuvering after one split finished; An efficient design with wheels makes for easy transportation.
Model | 7TS |
Production dimension (L/W/H *inch) | 39/10.6/18.5 |
Net weight (LBS) | 99 |
Packing size (inch) | 42.5/12.8/20.5 |
Total weight of packing (LBS) | 110 |
Horizontal/Vertical | Horizontal |
Splitting method (optional) | 2 ways/4 ways |
Cycle | 15S |
Working voltage/Hz | 115V/60Hz |
Motor power | 3HP |
Protection level | IP54 |
Splitting stroke Length (inch) | 22 |
Splitting diameter φ (inch) | 0.2-15.8 |
Operating method | Hands |
Max. tonnage | 7.5T |
Hydraulic oil No. | 46# |
Tires | 6×1.5 |
Hydraulic oil | 0.8GAL |
Inner diameter of cylinder (inch) | 2.2 |
Piston diameter (inch) | 1.2 |
