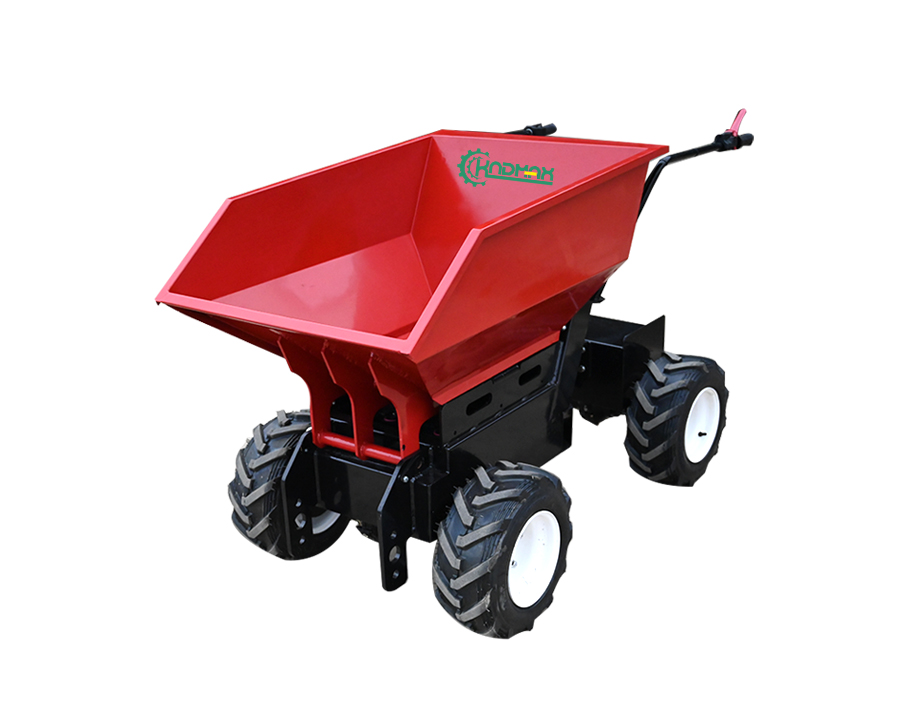

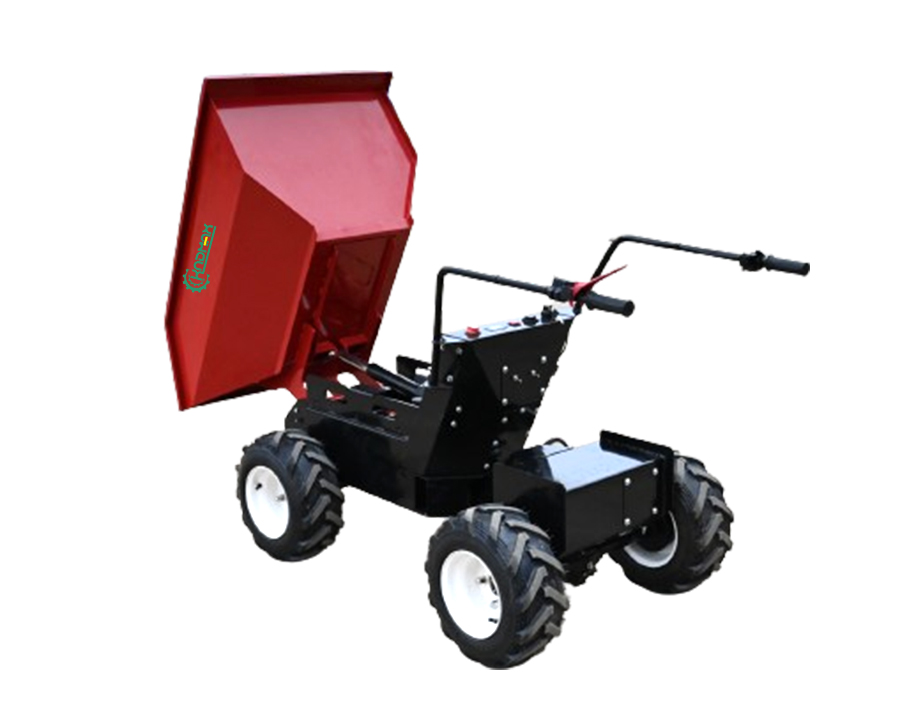

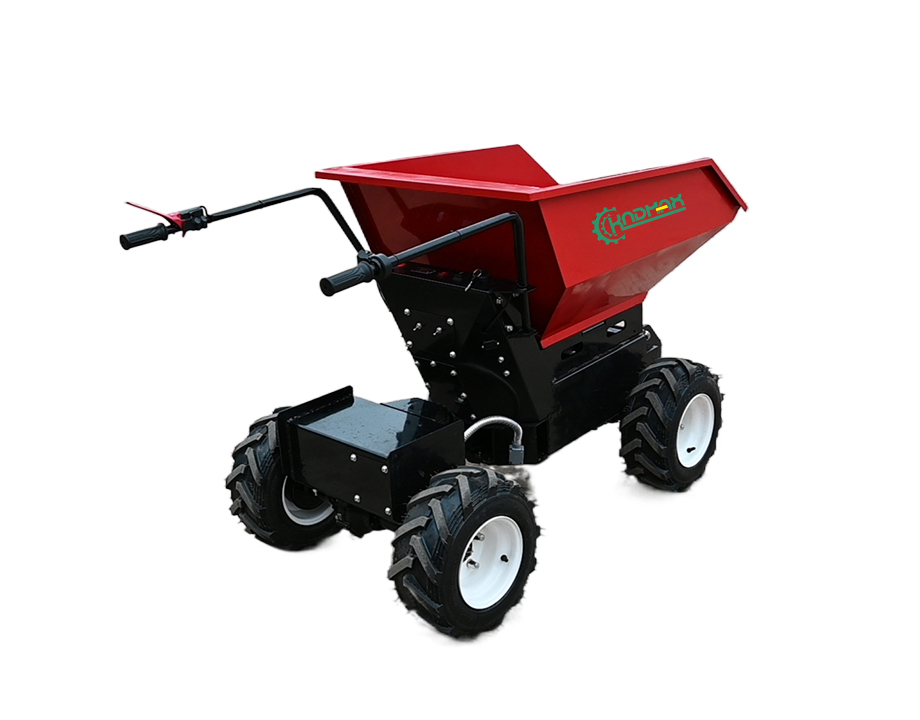

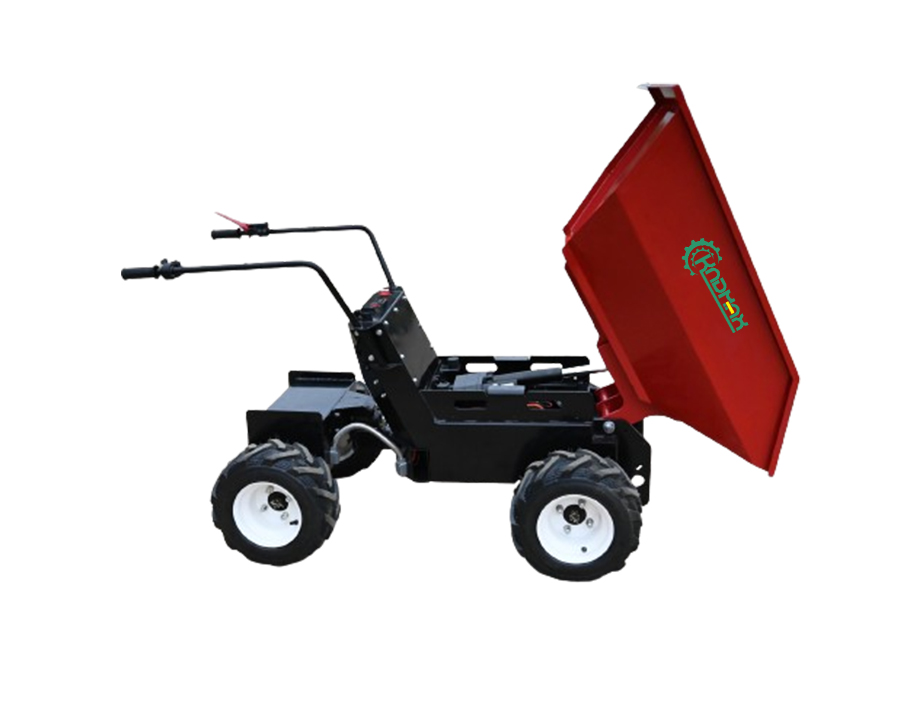

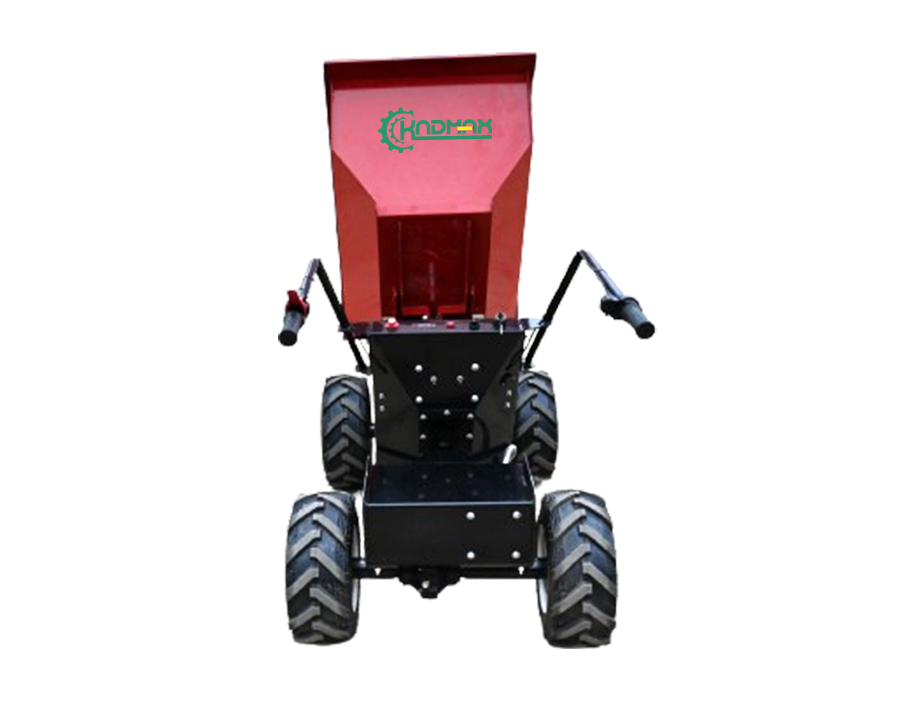

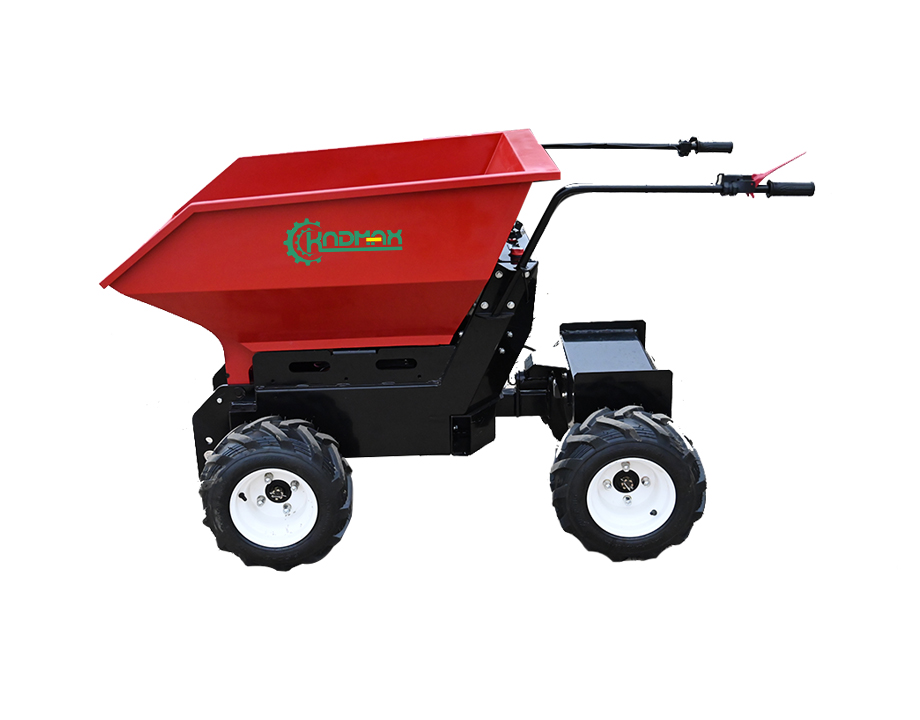

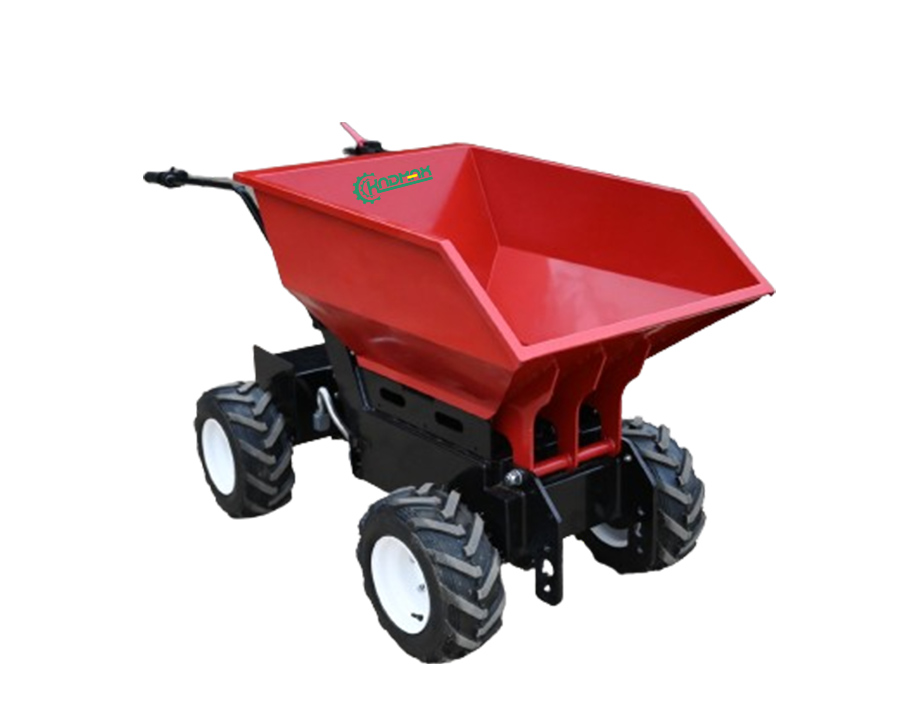

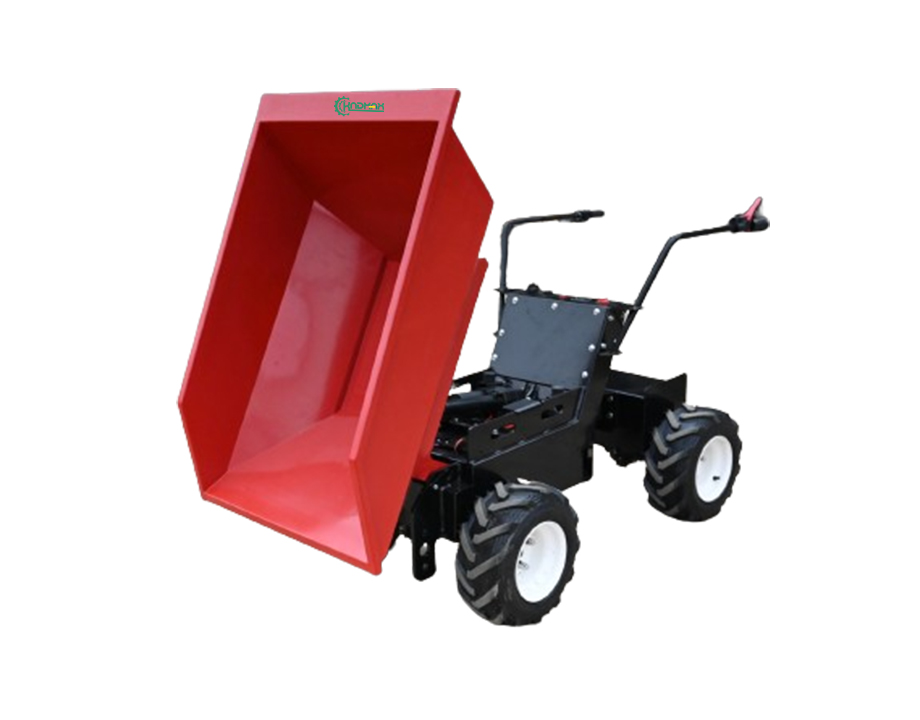

It is a truck designed for carrying bulk materials, usually on construction sites. It carries materials efficiently, ensuring intensive work cycles. The machine occupies a small area and is easy to drag. The operation is simple, and the driving smoothness is good. Electric design allows you to complete the operation work silently and efficiently. Electric mini dump truck ED500E, equipped with 48v 1200w battery system, this wheelbarrow can provide maximum versatility and light touch operation. The ED500E Mini Dump Truck features an 1100 lbs load capacity for use indoors or outdoors, and its compact size will allow passage through doorways/driveways as small as 29in, providing excellent load capacity and productivity. This mini dump truck has an electromagnetic braking system, which can significantly reduce the wear and tear of the system as there is no need for physical contact to create friction between components. It requires almost no maintenance costs. It has forward and reverse transmission and can be rotated 360 degrees. Convenient to use in narrow areas.
Model | ED500E |
Motor | 600W×2 |
Batteries | 48V 32Ah Maintenance Free Lead-acid Battery |
Weight | 235kgs |
Loading Capacity | 500kgs |
Bin size | 1060×670×470mm |
Tire size / Track Width | 16×6.5-8 |
Tipping | Electric |
Forward Speed | 1:0-2 km/h |
2:0-4.4km/h | |
3:0-5.1km/h | |
Reverse Speed | 0-2 km/h |
Transmission oil | 80W-90 |
Working Time | 6-8 hours |
Charging Time | 6-7 hours |
Hydraulic oil and oil tank capacity | No |
Package Size | 1120*740*1100 |
40HQ Loading Qty. | 64PCS |
